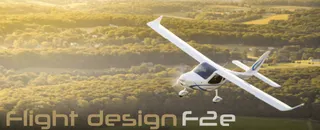

FLIGHT DESIGN F2e
Flight Design general aviation has created an international team of light aircraft industry specialists and designers to collaborate on the F2. The structure of the F2 is manufactured to close tolerances in pre-impregnated carbon fiber for great structural strength and lightweight. The advanced features of the F2 will make all your flights safer and more enjoyable but also a better environment for learning how to fly. A modern aircraft should have all the features seeking to improve performance, situational awareness, and reduce the pilot workload.
he F2e is based upon the Flight Design F Series modular platform. All F Series variants are designed and built according to EASA CS-23 and FAA Part 23 requirements. This allows more opportunities for increasing performance, allows all uses including Personal, Flight training, and Commercial rental anywhere in the world. The F2e will not be restricted like electric-powered Ultralights or LSA types which have no international regulatory path, so it will be certified to VFR Day-Night and eventually, IFR. The F2e uses the structure of the soon-to-debut F4 four-seat version, allowing a 1000 kg (2200 lbs.) MTOW. This provides an ample amount of onboard energy storage (100 kWh) for the F2e’s performance and duration goals using today’s technology.
TECHNICAL DATA FLIGHHT DESIGN F2 GeometryLength 6.86 m 22.50 ftHeight 2.34 m 8.75 ftWing span 9.872 m 32.3 ftAreasWing 11.1 m² 120 ft²Horisontal tail 2.05 m² 22.04 ft²Aspect ratioWing 8.7
Prices are subject to fees and charges relevant to processing and import costs depending on current dollar exchange conditions. For a price and delivery time estimate, contact us at EXPRESSION OF INTEREST
Charge characteristics
Peak Charge at 30kw 50Amp
Charger requires 3phase power installation
Power requirements Approx. 15kwh per charge
Battery capacity 21kwh
